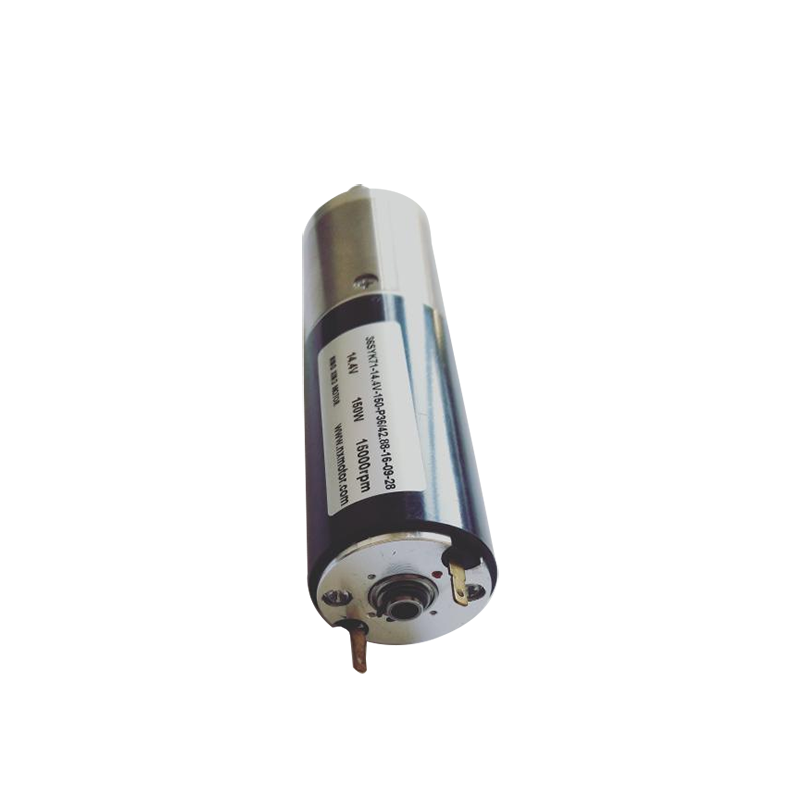

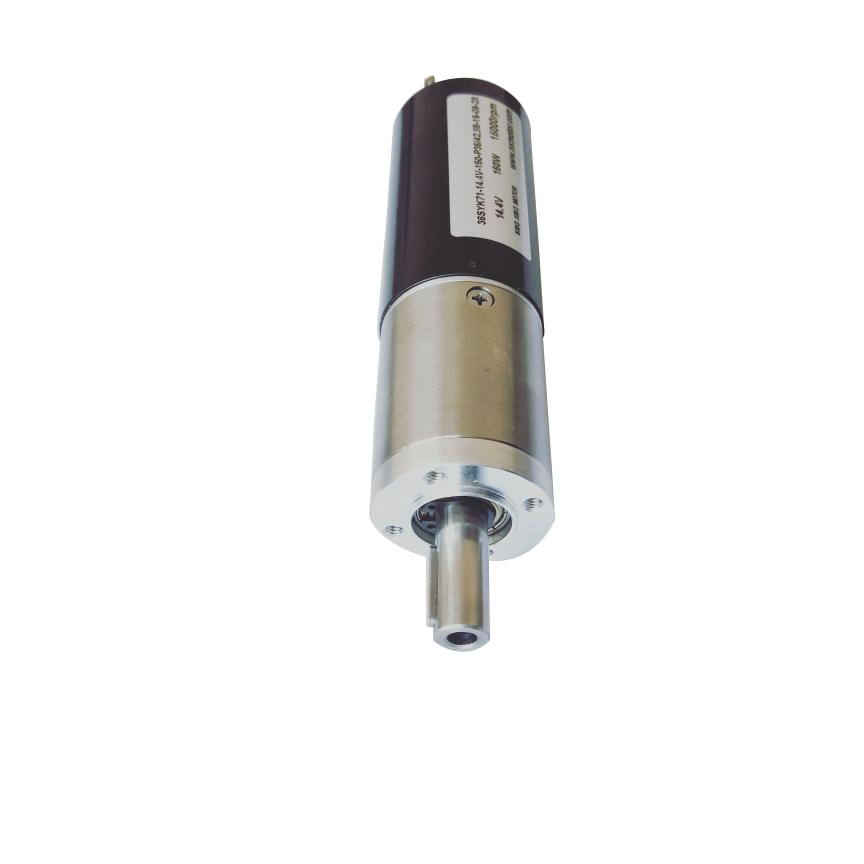

Planetary Gearhead 36mm

As the professional manufacture, we would like to provide you Ruixing Planetary Gearhead 36mm. And we will offer you the best after-sale service and timely delivery. The 36mm planetary gearhead, in particular, is often used in applications that require a high output torque, such as:Industrial automation, Material handling, Printing machinery, Food processing equipment, Packaging machinery. In these applications, the 36mm planetary gearhead can provide precise motion control and increased torque output, improving the efficiency and reliability of the machinery.

Teknikal na Parameter
Diameter ng Gearbox		mm		36
Bearing ng Shaft		opsyonal/-		Ball Bearing
Radial Clearance		mm		≤0.1
Axial Clearance		mm		≤0.2
Bilis ng Input ng Pahintulot		rpm		≤10,000
Inirerekomendang Saklaw ng Temperatura		℃		-20 hanggang +125
Puwersa sa Pag-install ng Pahintulot		N		≤120
Axial Load		N		≤80
Radial Load		N		≤100
Mga Karaniwang Aplikasyon
Medikal na kagamitan		Mga digital na produkto		UAV		Industrial automation
impormasyon ng produkto
1		Yugto	1	2	3		4		5
2		Bilang ng Order	1236002	1236010	1236035	1236073	1236097	1236159	1236274	1236402
3		ratio	3.75	14.06	52.73	141.56	197.75	474.27	114,844	3082.77
4		Bilang ng Order	1236004	1236014	1236042	1236077	1236109	1236182	1236303	1236432
5		ratio	4.67	17.50	65.63	169.00	246.09	660.59	1429.17	4293.85
6		Bilang ng Order	1236006	1236019	1236051		1236124	1236198	1236333	1236449
7		ratio	6.50	21.78	81.67		306.25	920.11	1778.52	5980.72
8		Bilang ng Order		1236024	1236061		1236142		1236362
9		ratio		30.33	101.63		381.11		2213.27
1		L(mm)	36	43.3	50.6		57.9		65.2
2		Torque(Nm)	4.0	8.0	16.0		16.0		20
3		Stall Torque(Nm)	5.0	12.0	25.0		25.0		30
4		Max Efficiency(%)	90	81	73		65		59
5		Timbang(g)	210	245	280		315		350
6		Walang-Load na Backlash(°）	0.8	1.0	1.0		1.0		1.2
