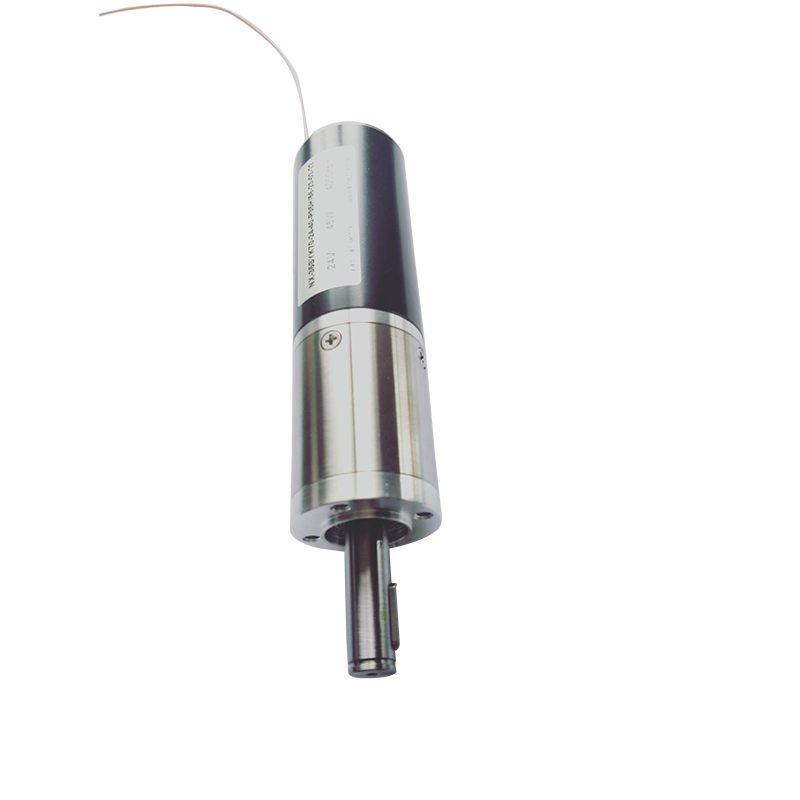

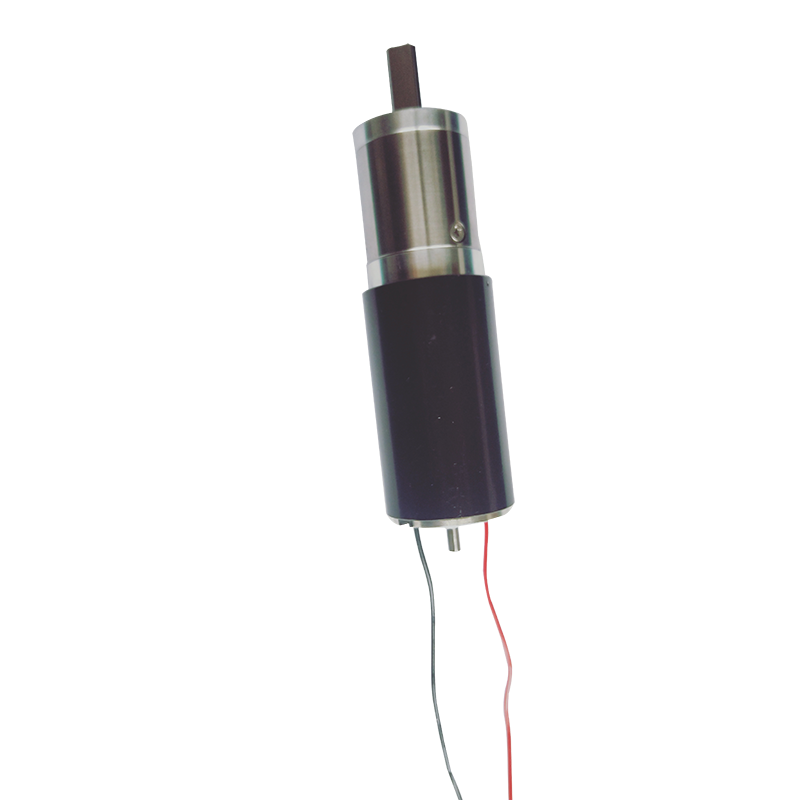

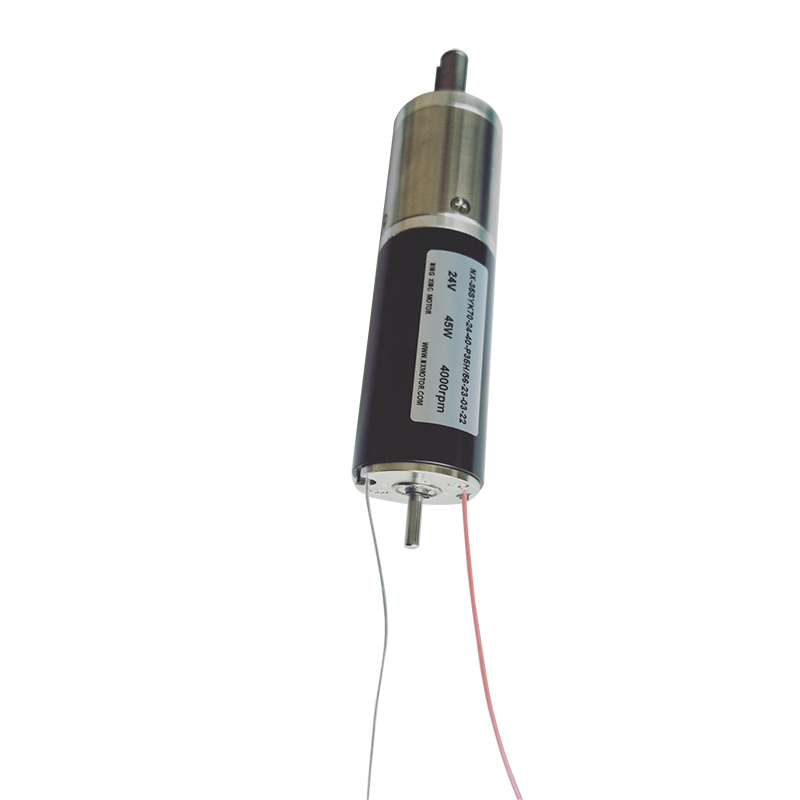

Planetary Gearhead 35mm

Makakaasa ka na bumili ng Ruixing Planetary Gearhead 35mm mula sa aming pabrika at iaalok namin sa iyo ang pinakamahusay na serbisyo pagkatapos ng pagbebenta at napapanahong paghahatid.

Magpadala ng Inquiry

Paglalarawan ng Produkto

You can rest assured to buy Ruixing Planetary Gearhead 35mm from our factory and we will offer you the best after-sale service and timely delivery. To summarize, a 35mm planetary gearhead is an effective gearbox that provides precise motion control and high torque output for small electric motors and other precision applications.

Parameter ng P35H Technique

Teknikal na Parameter

Teknikal na Parameter
Diameter ng Gearbox	mm		35
Bearing ng Shaft	opsyonal/-		Ball Bearing
Radial Clearance	mm		≤0.1
Axial Clearance	mm		≤0.2
Bilis ng Input ng Pahintulot	rpm		≤10,000
Inirerekomendang Saklaw ng Temperatura	℃		-20 hanggang +125
Puwersa sa Pag-install ng Pahintulot	N		≤120
Axial Load	N		≤80
Radial Load	N		≤100
Mga Karaniwang Aplikasyon
Medikal na kagamitan	Mga digital na produkto		UAV		Industrial automation
impormasyon ng produkto
1	Yugto	1	2	3		4		5
2	Bilang ng Order	1235003	1235008	1235024	1235043	1235060	1235099	1235132	1235198
3	ratio	4.00	12.25	42.88	84.00	150.06	361.00	525.22	1444.00
4	Bilang ng Order	1235004	1235010	1235031	1235044	1235070	1235102	1235144	1235215
5	ratio	4.75	14.00	56.00	90.25	196.00	384.00	686.00	1824.00
6	Bilang ng Order	1235006	1235011	1235034	1235053	1235082	1235109	1235152	1235224
7	ratio	6.00	16.00	64.00	144.00	256.00	456.00	784.00	2166.00
8	Bilang ng Order		1235016	1235040		1235091		1235172	1235235
9	ratio		21.00	76.00		304.00		1024.00	2736.00
1	L(mm)	40.6	47.4	54.0		60.6		67.2
2	Torque(Nm)	3.0	8.0	16		16		20
3	Stall Torque(Nm)	5.0	12	25		25		30
4	Max Efficiency(%)	90	81	73		65		59
5	Timbang(g)	210	245	280		315		350
6	Walang-Load na Backlash(°）	1	1.5	1.5		2		2
